Product description
Series SMA are very popular thread coupling miniature coaxial connectors. Which have the excellent performance of high reliablity, high mechanical strength, high durability, and optimum electrical properties, are widely used to connect RF coaxial cables for mobile coummucation equipment and electronic communication instruments.

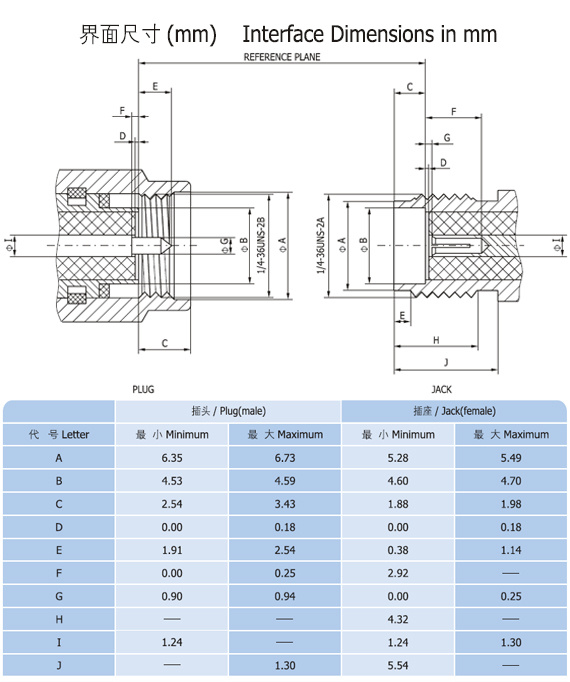

The interface dimensions and technical characteristics are in accord with the specifications of MIL-C-39012, IEC 169-15 and CECC 22110
Female with 2 Holes Flange for RG214 cable

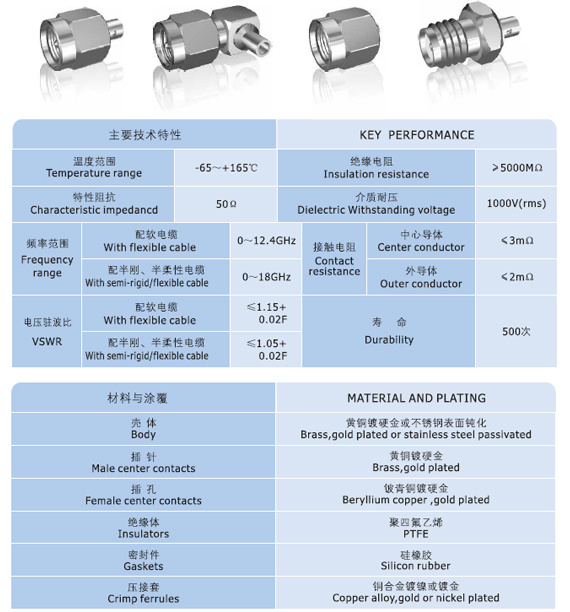

SMA key performance
Temperature range: -65 to +165C
Characteristic impedance: 50 ohms
Frequency range:
With flexible cable: 0 - 12.4GHz
With semi-rigid/flexible cable: 0 - 18GHz
VSWR:
With flexible cable: ≤1.15 + 0.02F
With semi-rigid/flexible cable: ≤1.05 + 0.02F
Insulation resistance: ≥5,000MΩ
Dielectric withstanding voltage: 1,000Vrms
Contact resistance:
Center conductor: ≤3MΩ
Outer conductor: ≤2MΩ
Durability: 500 times
