QMA Series
The QMA connector is a quick disconnect version of the SMA connector and shares the same internal construction
Category：
RF Coaxial Connectors
key word:
QMA
Panel Feed through Connectors
File download：
Message
Product description
The QMA connector is a quick disconnect version of the SMA connector and shares the same internal construction.The QMA interface allows operation through 18 GHz and features best transmission characteristics in the range of DC to 6 GHz.The modified quick-lock mechanism enables fast,easy and reliable connections in tightest spaces and without assembly tools.
The QMA series offers a more convenient installation than SMA connectors.Typically,these connectors can be installed into a system 10 times faster than SMA connector.Another benefit is the denser packaging.The pitch can be reduced and the connectors can be rotated 360 degrees after they are mated which greatly improves the flexibility of installations.
Product Features

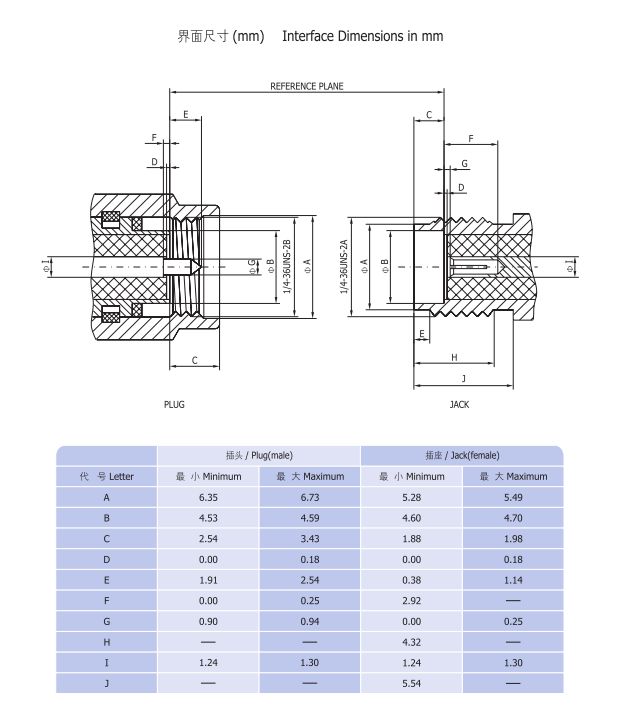

Interface according to QLF-Standard
Quality tested according to IEC 60169
Frequency range max.up to 18 GHz,optimized up to 6 GHz
VSWR(straight connector):≤1.05 3 GHz;≤1.12 6 GHz
Low Intermodulation:≤-120 dBc 1.8 GHz(2x 20W)
Minimum pitch:12.4 mm
Cost effective,easy and 10 times quicker mounting than SMA ( 2 seconds)
