SMB are snap-on connector design. small size, high packing density, fast and reliable connection


RF Coaxial Connectors

key word:

SMB male bulkhead

Straight Cable Jack

File download:


Product description

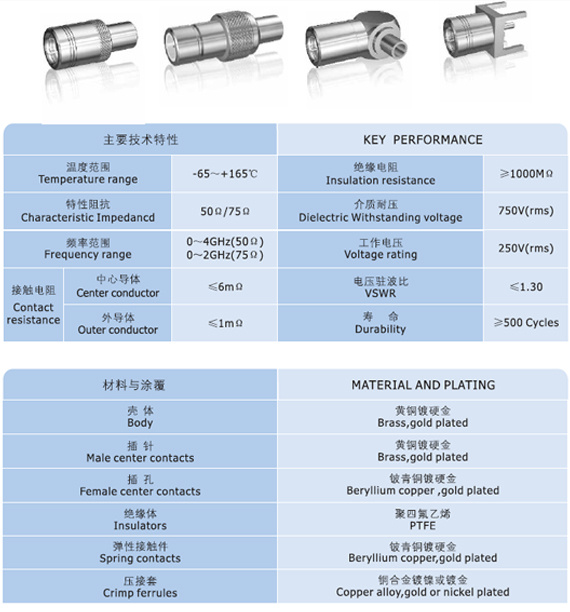

Series SMB are snap-on connector design. With the excellent performances of small size, high packing density, fast and reliable connection, excellent electrical and mechanical properties, they are always suitable to connect coaxial cables in RF circuits of electronic equipment. The applicable offer broadband capability through 4GHz. Their interface dimensions and technical characteristics are MIL-C-39012, IEC60169-10 BS9210 N 0007, NFC93650 and CECC22130 compliant.Characteristic impedance 50 Ohm, 75 Ohm.
